Specifications:
1. 主體材料Body Material:Black Glass-Fiber Nylon 66.94V0
2. 電氣參數Operating data:10A.15A, AC250V
3. 保險絲規格For fuses: Ø5×20,6.3A250V
4. 絕緣電阻Insulation resistance: DC 500V 100MΩ(min.)
5. 耐壓Dielectric strength: 2000 VAC/1 minute
6.

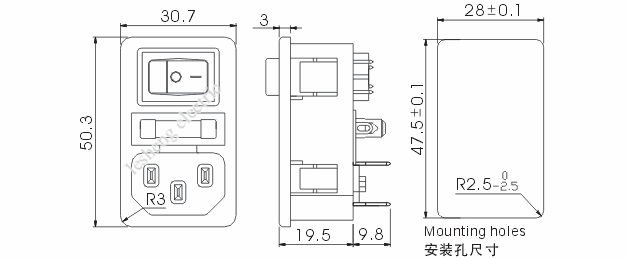

裝配方式：插卡式，裝配板厚度1.0、1.5或2.0mm
7.
Safety Approvals安全認證：
(尺寸及相關認證等技術參數務請確認為準)
