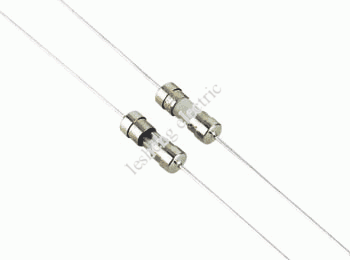

IEC規(guī)格3×10mm,TIME-LEG CERAMIC TUBE FUSE
Ø3×10mm（ICP系列）保險絲規(guī)格書
WITH SURGE WITHSTAND FUNCTION: These fuses combines conventional over-current protection to withstand high rush current,short duration pulses.These fuses are suitable to comply with the short circurt requirement of modern compact electronic products.Especially with a neat shrink tube,it can reduce the SPACING requirements.
產(chǎn)品特性: ICP — 慢熔斷型(Time-Leg)

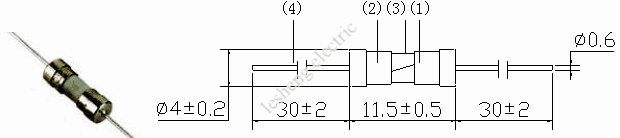

結構STRUCTURE:
(1) WIRE: ALLOY
(2) CAP: BRASS WITH NICKEL PLATED
(3) BODY: CERAMIC TUBE
(4) LEAD: TINNED COPPER WIRE
結合強度： 銅帽與陶瓷管之間的結合應能承受0.5Kg的軸向拉力。
熔斷特性:

% of Rating	210%	275%		400%		1000%
250mA–6.3A	Max.2 min.	Min.400mS	Max.10S	Min.150mS	Max.3S	Min.20mS	Max.150S

熔化熱能值和損耗功率:

額定電流	額定電壓(AC)	熔化熱能值
250 mA	250V	0.80
315 mA	250V	0.70
400 mA	250V	1.38
500 mA	250V	1.87
630 mA	250V	2.09
800 mA	250V	3.60
1.0 A	250V	3.00
1.25 A	250V	4.50
1.6 A	250V	10.0
2.0 A	250V	27.0
2.5 A	250V	31.0
3.15 A	250V	41.0
4.0 A	250V	63.0
5.0 A	250V	97.0
6.3 A	250V	161.0

分斷電流BREAKING CAPACITY:35A or 10 In whichever is greater,tested with AC for the Low breaking capacity   test.
Safety Approvals:(安全認證):
包裝:  500支塑袋裝；1000支紙盒裝；10000支紙箱裝；按客戶要求特殊包裝.
